Chest radiography for simplified evaluation of central venous catheter tip positioning for safe and accurate haemodynamic monitoring: a retrospective observational study
  1. Minwoo Kang1,
  2. Jinkun Bae1,
  3. Sujin Moon2,
  4. Tae Nyoung Chung1
  1. 1Department of Emergency Medicine, CHA Bundang Medical Center, CHA University, Seongnam-Si, Gyeonggi-do, Republic of Korea
  2. 2School of Medicine, CHA University, Seongnam-Si, Gyeonggi-do, Republic of Korea
  1. Correspondence to Dr Tae Nyoung Chung; hendrix74{at}gmail.com

Abstract

Objectives The tip-to-carina (TC) distance on a simple chest X-ray (CXR) has proven value in the determination of correct central venous catheter (CVC) positioning. However, previous studies have mostly focused on preventing the atrial insertion of the CVC tip, and not on appropriate positioning for accurate haemodynamic monitoring. We aimed to assess whether the TC distance could detect the passage of the CVC tip into the superior vena cava (SVC) and the right atrium (RA), and to accordingly suggest cut-off reference values for these two aspects.

Design Retrospective observational cohort study.

Setting Single urban tertiary level academic hospital.

Participants 479 patients who underwent CXR and chest CT scan after the insertion of a CVC with a 24-hour interval during the study period.

Intervention The TC distance was measured on CXR, and the position of the CVC tip was assessed on the chest CT images. The TC distance was described as a negative or positive number if the CVC tip was above or below the carina, respectively. Receiver-operating characteristics curve analyses were conducted to ascertain the TC distance to detect SVC entrance and RA insertion of CVC tip.

Results The TC distance could significantly detect both SVC entrance and RA insertion (p<0.001 for both; area under curve 0.987 and 0.965, respectively), with a reference range of −6.69 to 15.61 mm.

Conclusion The TC distance in CXR is a simple and precise method to confirm not only the safe placement of the CVC tip but also its optimal positioning for accurate haemodynamic monitoring.

  • adult intensive & critical care
  • chest imaging
  • accident & emergency medicine
http://creativecommons.org/licenses/by-nc/4.0/

This is an open access article distributed in accordance with the Creative Commons Attribution Non Commercial (CC BY-NC 4.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited, appropriate credit is given, any changes made indicated, and the use is non-commercial. See: http://creativecommons.org/licenses/by-nc/4.0/.

https://doi.org/10.1136/bmjopen-2020-041101

Statistics from Altmetric.com

    Request Permissions

    If you wish to reuse any or all of this article please use the link below which will take you to the Copyright Clearance Center’s RightsLink service. You will be able to get a quick price and instant permission to reuse the content in many different ways.

    Strengths and limitations of this study

    • This is the first study that suggested specific range of the tip-to-carina distance on the simple chest X-ray (CXR) to ascertain correct positioning of central venous catheter (CVC) tip in extracardiac superior vena cava.

    • Our study only used the data of individuals whose CXR and CT scan were taken with same posture (both arms down), which could minimise possible errors caused by migration of CVC tip.

    • Our results were derived from a retrospective analysis of the dataset from a single centre, so the generalisation of the results needs to be cautiously undertaken.

    Introduction

    Central venous catheter (CVC) insertion is a widely performed procedure that plays an important role in the care of critically ill patients, as well as patients who require parenteral nutrition, antibiotic therapy, chemotherapy, haemodialysis and patients with difficult peripheral venous access.1 Central venous pressure (CVP), which is measured by CVC, is also the most frequently used haemodynamic parameter for fluid therapy of critically ill patients.2

    The superior vena cava (SVC) is the largest central vein, and the CVP can be constantly measured regardless of whether the CVC tip is within the SVC or the right atrium (RA).3 The SVC is the most suitable location to obtain CVP measurements due to the high blood flow velocity. However, if the CVC tip is inserted into RA, it may cause potentially fatal complications such as perforation, haemopericardium and cardiac tamponade.4–7 Therefore, the positioning of the CVC tip in the SVC such that RA insertion is prevented may be necessary for the prevention of possible fatal complications while retaining the capacity for precise CVP measurements. The lower one-third of the SVC, close to the junction of SVC and RA, is recommended as an appropriate catheter tip location.8

    Various methods can be used to confirm the position of the CVC tip, and the gold standard is transoesophageal echocardiography (TOE). However, the TOE is rarely available in clinical practice settings, except in specialist facilities that include a cardiac procedure room.9–12 Chest X-ray (CXR) is the most common tool to confirm the position of CVC tip because of its wide availability and relative low cost. Recently, point-of-care ultrasound has shown its value in the confirmation of CVC tip placement, and even showed superiority in many aspects compared with CXR.13–15 However, the sole use of ultrasound in real practice is restricted by various factors, and CXR is still used in almost every case of CVC tip placement.16 With a CXR, the position of the CVC tip can be confirmed relative to various anatomical landmarks in the chest.17–23 Among these, the tip-to-carina (TC) distance has been previously shown to be a reliable indicator in several studies.19 22–24 However, the studies mostly focused on the prevention of intracardiac placement of the CVC tip, but not on the confirmation of appropriate positioning of the CVC tip in the SVC, which is essential for accurate haemodynamic monitoring.

    We hypothesised that the TC distance that is measured on simple CXR is appropriate for confirming the proper placement of the CVC tip, and can prevent intracardiac placement of the CVC while retaining the ability to accurately measure the haemodynamic status. We aimed to evaluate this hypothesis, and to ascertain reference values of the TC distance to facilitate the confirmation of appropriate placement of the CVC tip.

    Material and methods

    Patient and public involvement

    No patient involved.

    Study population and eligibility

    This study included adult patients (age ≥18 years) who visited the emergency department (ED) of CHA Bundang Medical Center, a tertiary-level teaching hospital with more than 85 000 yearly ED visits, between 2 January 2016 and 2 July 2018 and underwent CXR and chest CT within 24 hours of CVC insertion. The exclusion criteria were: (1) age less than 18 years, (2) abnormal chest anatomy (eg, lung cancer),25 (3) difficultly in ascertaining the position of the CVC tip on a chest CT or CXR image and (4) the chest CT scan is performed with both arms raised.26

    Data collection

    Data on patient demographics and characteristics, including the height and the weight, were obtained through a review of the EMRs. Chest CT scans were conducted on a 64-slice multidetector-row CT (LightSpeed VCT, GE Healthcare, Milwaukee, Wisconsin, USA) with the following scanning parameters: 120 kV, 200 mA, 0.625 mm collimation, 1.5 mm increment and 3 mm reconstruction. In addition, 60–120 mL ioversol (Optiray 320 mg/mL, Tyco Healthcare, Montreal, Canada) was intravenously injected, based on the patient’s body mass index (BMI) (3 mL per BMI, 20 mL if BMI<20 and 120 mL if BMI>40). The scan range of the chest CT was from the lower half of the neck to the adrenal glands, and both chest CT and CXR were conducted with the patient in the supine position with both arms down.

    The presence of CVC, SVC entrance and RA insertion of the CVC tip were verified in the chest CT and CXR images by using picture archiving and communications system (PACS; Marosis, Seoul, Republic of Korea). The decision was made based on the agreement of two separate researchers. On CT imaging, the identification of the CVC tip below the crista terminalis confirmed RA insertion, whereas tip location below the level of where both the brachiocephalic veins merge to form the SVC was defined as an entrance into the SVC.

    A horizontal line perpendicular to the carina and CVC tip was drawn in the CXR image and on the CT scout image. Using the distance measurement function of PACS, the vertical distance of the two horizontal lines was measured and recorded as the TC distance. All TC distance measurements were undertaken by the same author. The carina level was defined as zero; the TC distance was described as a negative or positive number if the CVC tip was above or below the carina, respectively. The thoracic width was measured as the distance between the two points where the line perpendicular to the body axis at the level of the ceiling of the right diaphragm met the internal surface of the ribs (figure 1). The TC distance was measured both from CXR and the scout film of the chest CT, and the distances were compared to confirm the reliability of the CXR measurement. The TC distance was divided by the BMI (body weight (kg)/height2 (m)) and by the thoracic width to obtain body size-adjusted values.

    Figure 1
    Figure 1

    Definition of the tip-to-carina (TC) distance: Each horizontal line perpendicular to the carina and central venous catheter (CVC) tip was drawn on the simple chest X-ray image. The vertical distance of the two horizontal lines was measured and defined as the TC distance. The position in the carina is defined as zero, and positioning of the CVC tip above (–) or below (+) the carina is recorded. RA, right atrium; SVC, superior vena cava.

    Outcomes

    The primary outcome was the detection of SVC entrance and RA insertion of the CVC tip, and secondary outcomes were the reference TC distance range indicating the SVC entrance and extracardiac placement of the CVC tip and the relative predictive ability of body size-adjusted TC distance values.

    Statistical analysis

    Data with normal distribution are presented as mean±SD, and non-parametric data are presented as the median (IQR). The comparison of continuous variables was undertaken with the independent t-test or the Mann-Whitney U test for data with normal or non-normal distribution, respectively. The matched-pair analysis of TC distances measured from the CXR and chest CT images were undertaken with the Wilcoxon signed ranks test. We conducted receiver-operating characteristics (ROC) analysis to assess the predictive ability of the TC distance in the CXR images to ascertain the SVC entrance or RA insertion of the CVC tip, and the area under curve (AUC) was calculated to quantify the predictive ability. The ROC analyses were repeated with the body size-adjusted TC distance values, and their AUCs were compared with those of the TC distance values by using the DeLong test.27 The cut-off point of the TC distance to detect SVC passage of the CVC tip was defined as a value that could maximise sensitivity while maintaining 100% specificity. Similarly, the cut-off point to detect RA insertion was defined as a value that maximised specificity while maintaining 100% sensitivity. All statistical analyses were conducted in IBM SPSS Statistics V.26.0 (IBM), except for the comparison of ROC curves for which we used R V.4.0.0 (The R Foundation for Statistical Computing, https://www.r-project.org/foundation/). Statistical significance was set to p value <0.05.

    Results

    Participants’ characteristics

    During the study period, a total of 758 patients met the inclusion criteria, and 479 of them were included in the final analysis dataset after the exclusion of 279 patients (figure 2). The baseline data of the study participants are described in table 1. There was no significant difference between the TC distance measured on CXR and on the scout film of the chest CT (p=0.638).

    View this table:
    Table 1

    Baseline characteristics of the study participants

    Figure 2
    Figure 2

    Flow diagram of the patient disposition in the study. CVC, central venous catheter; CXR, chest X-ray.

    Ability of TC distance and body size-adjusted TC distance for detecting SVC entrance and RA insertion

    The TC distance, the TC distance corrected by thoracic width and the TC distance corrected by the BMI could all significantly detect the SVC entrance of the CVC tip (p<0.001 for all). The AUCs of the TC distance, the TC distance corrected by thoracic width and the TC distance corrected by the BMI were 0.987, 0.989 and 0.992, respectively (figure 3A, B). There was no statistically significant difference in the comparisons of ROC curves of the TC distance with those of the TC distance corrected by the thoracic width as well as those of the TC distance corrected by the BMI (p=0.189 and 0.8258, respectively). The cut-off value of the TC distance to detect the SVC entrance of the CVC tip was −6.70 mm (sensitivity 89.8% and specificity 100%).

    Figure 3
    Figure 3

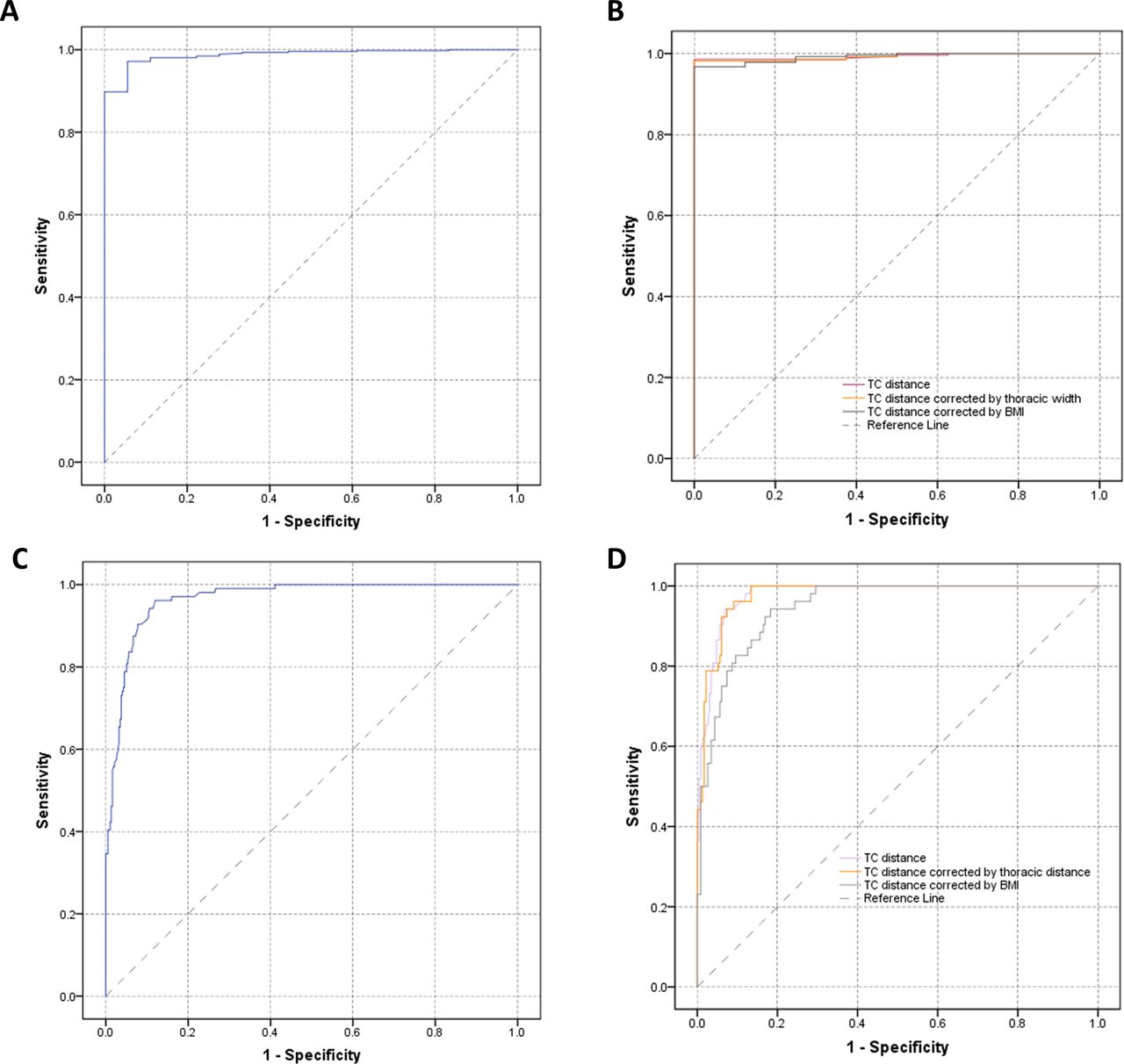

    Receiver operating characteristics (ROC) curves of the tip-to-carina (TC) distance and the body size-adjusted TC distance. (A) ROC curve of the TC distance to detect the passage of the central venous catheter (CVC) tip into the superior vena cava (SVC). (B) Comparison of the ROC curves of the TC distance and the body size-adjusted TC distance to detect the SVC passage of the CVC tip. (C) ROC curve of the TC distance to detect the entrance of the CVC tip into the right atrium (RA). (D) The comparison of the ROC curves of the TC distance and the body size-adjusted TC distance to detect the RA entrance of the CVC tip. BMI, body mass index.

    The TC distance, the TC distance corrected by the thoracic width and the TC distance corrected by the BMI could all significantly detect RA insertion of the CVC tip (p<0.001 for all). The AUCs of the TC distance, the TC distance corrected by the thoracic width and the TC distance corrected by BMI were 0.966, 0.966 and 0.947, respectively, (figure 3C, D). There was a statistically significant difference between ROC curves of the TC distance and the TC distance corrected by the BMI. However, there was no significant difference between the ROC curves of the TC distance and the TC distance corrected by the thoracic width (p=0.995 and 0.001, respectively). The cut-off value of the TC distance to detect the RA insertion of the CVC tip was 15.62 mm (sensitivity 100% and specificity 58.93%).

    Discussion

    The results of the present study showed that the TC distance on the CXR is a useful parameter to confirm the appropriate positioning of the CVC tip, not only to prevent intracardiac placement that can cause serious complications but also to ensure SVC placement for accurate CVP monitoring. Furthermore, we ascertained the optimal reference range of the TC distance based on the results.

    Previous studies of methods to confirm the location of CVC tip, including those that evaluated the TC distance on simple CXR, were undertaken to only assess the ability of imaging to avoid intracardiac placement of the CVC tip.9–12 17–24 28–31 The results of this study confirmed that the TC distance in the CXR could confirm not only extracardiac placement but also the SVC entrance of the CVC tip. The confirmation of intra-SVC placement of CVC tip is a prerequisite for accurate CVP monitoring, which is a crucial factor when considering the purpose of such an invasive procedure.

    The results of recent clinical trials suggest that CVP may not be a reliable index for assessing fluid responsiveness, and the use of CVP for such a purpose is not recommended in the most of clinical guidelines any more, despite its widespread utilisation.32 33 Moreover, intracardiac placement of CVC is not that dangerous as was before, owing to the development of the material.34 These facts may devalue the precise confirmation of CVC tip placement. However, CVP measurement still has some valuable aspects, and, most of all, it is still the most frequently used haemodynamic variable for deciding when to start fluid administration during critical care.35 Furthermore, it may be unethical to take an unnecessary risk even if it is minimal. Hence, the positioning of CVC tip in an appropriate place is still important as long as CVP insertion is performed.

    The body size-adjusted TC distance showed similar or even a significantly inferior ability to detect the SVC entrance and RA insertion of the CVC tip than the unadjusted TC distance in the present dataset. This result indicates that the body size adjustment of the TC distance to confirm appropriate positioning of the CVC tip is not necessary.

    We specified cut-off values to confirm the SVC insertion of the CVC tip as the value with maximal sensitivity and a specificity of 100%. Similarly, we specified the cut-off value for intracardiac insertion of the CVC tip as a value with maximal specificity and a sensitivity of 100%. These cutoffs were defined on the premise that it was more important to prevent false-positive than false-negative results for the determination of SVC entrance. Otherwise, the prevention of false negative is more important than that of false positive in the determination of intracardiac placement, with due consideration of their purposes. Thus, we obtained a range of TC distance (−6.69 to 15.61 mm) that could assure both SVC insertion and extracardiac placement of CVC tip. One may think that the cut-off value to detect intracardiac insertion can cause critical error in practice, because significantly high false-positive rate is expected. However, what we have to do in the case that TC distance exceed the cut-off value indicating intracardiac insertion is just a simple moving backward of CVC tip within the suggested range of TC distance. Hence, the proper positioning of CVC tip can be easily maintained even in the case of false detection of intracardiac insertion. This range also confirms the results of previous studies that suggested the carina as an anatomical landmark for the determination of CVC tip positioning based on anatomical analyses of cadavers or chest MRI/CT scan, given that the carina is definitely included in the cut-off range.17 22 The carina in the CXR can be considered to be a simpler landmark, based on the results of both the present and the previous studies, and we can ascertain safe and precise positioning of the CVC tip if the tip is located within the range of the TC distance between −6.69 mm and 15.61 mm.

    A recent study by Dulce et al30 that analysed the topographic relationships of the extrapericardial SVC by using CXR and CT imaging suggested that a location 9 mm above the carina (TC distance −9 mm) was the appropriate position for CVC tip placement, which is quite different from that of our results. We excluded the data on individuals whose chest CT images were obtained with both arms raised. However, the study of Dulce et al mostly used the data of participants whose CT images were obtained with both arms raised. This prominent discordance may be attributable to the differences in arm position during the chest CT scan examination, considering that the position of the CVC tip can change when both the arms are raised.26 The range of the TC distance determined from the present analysis could be more reliable as a reference range for the TC distance on CXR images, because the CXR is obtained with both arms downward in almost every condition.

    The present study has some limitations. First, our study was a retrospective analysis of the dataset from a single centre, and there may be a potential bias in our results due to the incompleteness of our dataset (especially with regard to the body-size parameters) or a possible bias in the characteristics of the study participants. Therefore, the generalisation of the results of this study needs to be cautiously undertaken. Second, the actual CVC tip position could be different at the time point of CXR and chest CT imaging, because of the maximum 24-hour interval between the CXR and chest CT examinations. However, the result of paired comparison of CT distances measured from both CXR and chest CT imaging in the present dataset revealed that the influence of this factor was minimal. Nevertheless, there could still be a chance of significant CVC tip migration, considering that even the respiratory phases could affect CVC tip position.36 Third, we excluded some cases during data collection because of the difficultly in ascertaining the position of the CVC tip on a chest CT image, and this could cause a selection bias although we made every effort not to exclude a case intentionally. The exclusion was carefully decided only when two independent researchers agreed that CVC tip was unidentifiable due to poor image quality or being obscured by contrast media.

    Conclusions

    The TC distance in CXR is a simple and precise method to confirm not only the safe placement of the CVC tip but also its optimal positioning for accurate haemodynamic monitoring. The TC distances in the range of −6.69 mm to 15.61 mm can be used as a reference range to define cutoffs for the optimal positioning of the CVC tip.
